140
10552
2 Ply 220 1/8in x 1/16in Cleat Top MOR
international designation:
Designed to prevent or reduce slideback on steep inclines, chevron belting increases conveyor capacity by allowing quick pick-up at the point of loading. It is ideal for conveying wet and granular materials, such as wet sand and gravel. Note: OAG does not include cleat height. This belt is suitable for industries such as aggregate, aviation, bottling, cellulose, construction, heavy rubber bulk handling, logistics, lumber, manufacturing, mining, oil and gas, package handling, power generation, roofing, steel, agriculture, building materials manufacturing, cement, chemicals, foundries, industrial, marble and ceramic, materials handling, printing and paper, quarry, waste and recycling, road construction and sand handling.
Similar products that may interest you:
Construction:

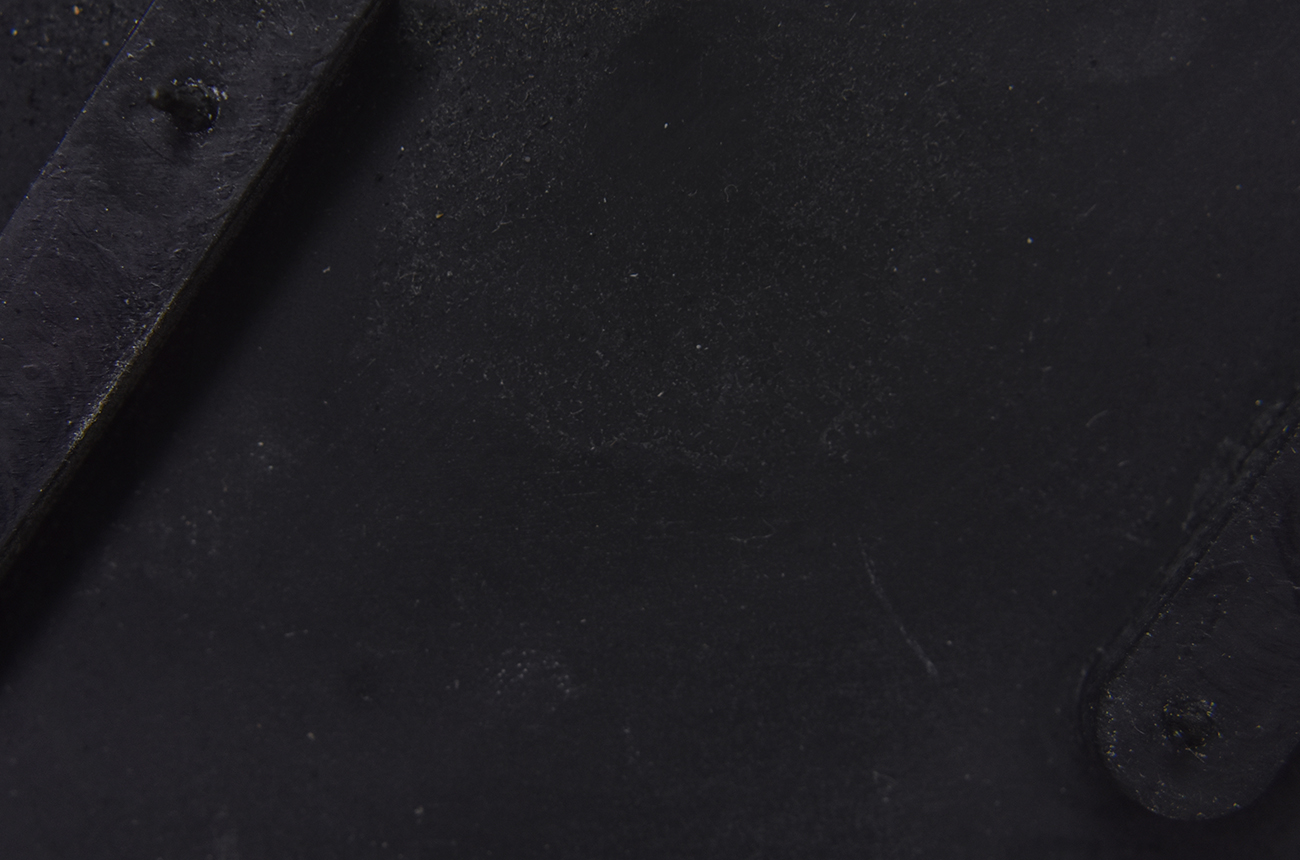

Compound Top Cover
Color
Top Cover Thickness (in)
Top Cover Description

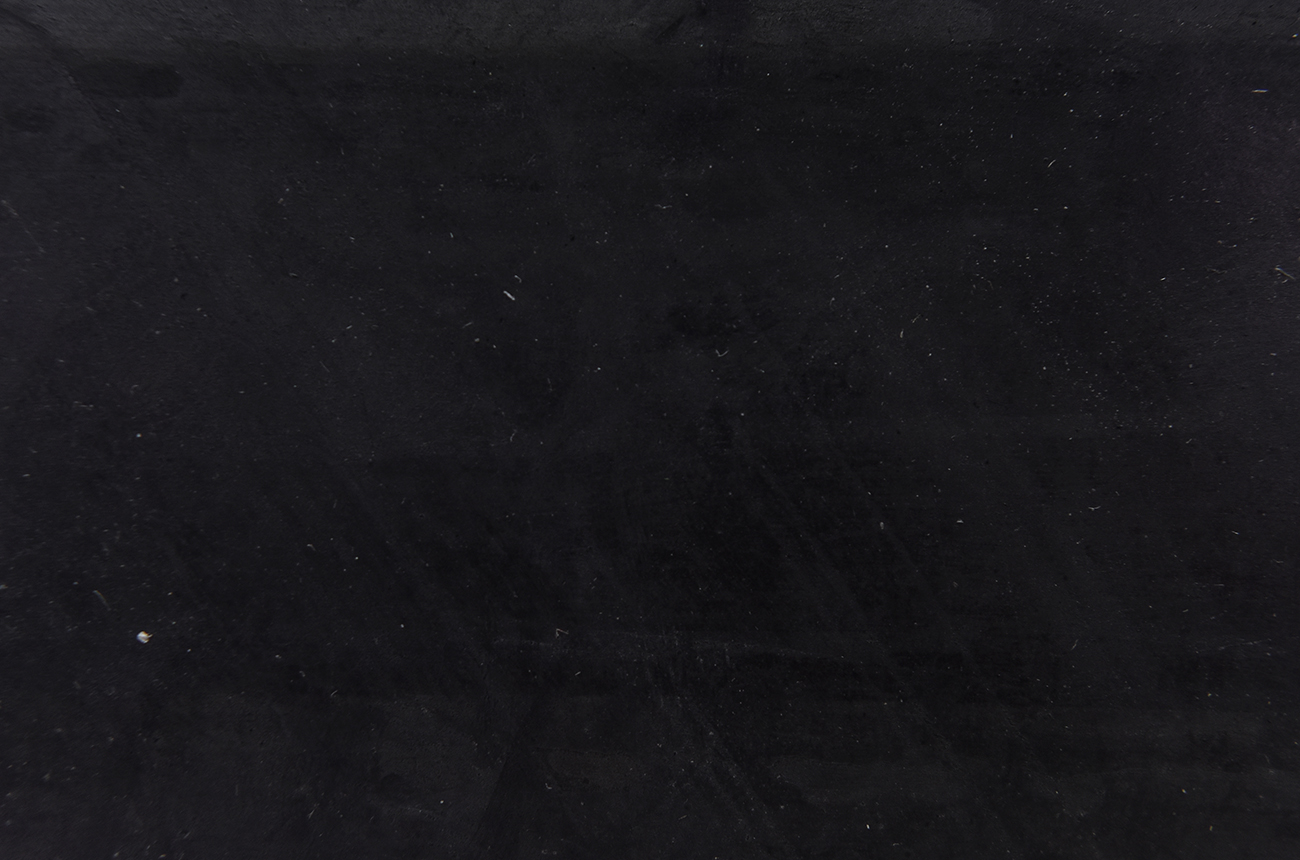

Compound Bottom Cover
Bottom Cover Thickness (in)
Bottom Cover Description

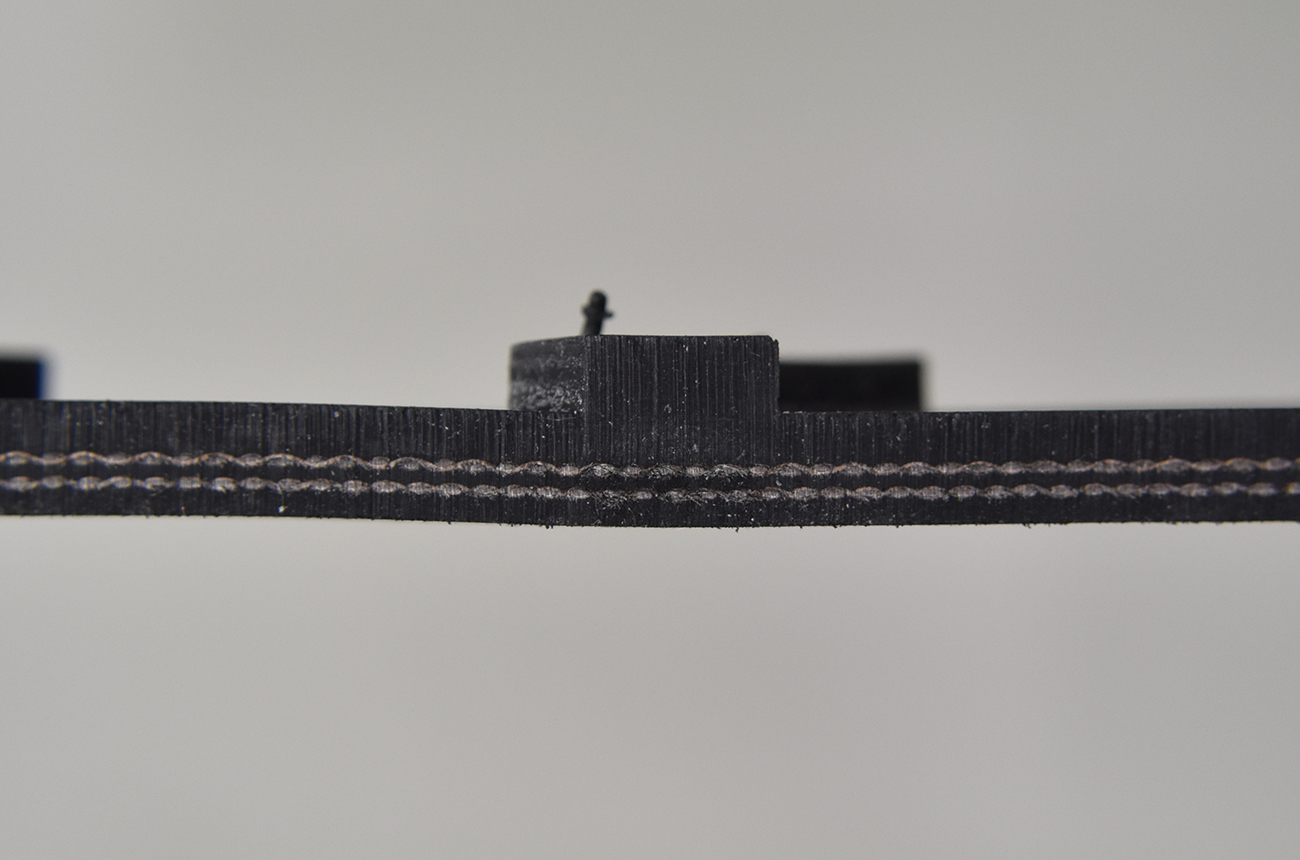

Number of Plies
Overall Gauge (in)
Unit Weight- lb/PIW
Carcass Type
Compound
Temperature Range (°F)- High
Temperature Range (°F)- Low
Black MOR
Black
(3.30 mm) 1/8 in
Cleated
Black MOR
(1.60 mm) 1/16 in
Smooth
2
(7.15 mm) 9/32 in
0.2100 lbs/PIW
Poly/Nylon
Black MOR
225 °F
-25 °F
Misc:
Pulley Diameter, Minimum
Min. Pulley Dia. - Head @ 80 - 100% Tension
Min. Pulley Dia. - Head @ 60 - 79% Tension
Min. Pulley Dia. - Head @ 59% Tension or Below
Minimum Pulley Diameter- Tail
16.00 in
14.00 in
10.00 in
10.00 in
Bucket Projection, Maximum
Belt Strength:
Tension Rating (PIW)
220 PIW
Splice Instructions:
Splice Step Size
Splice Process
8.00 in
Step Hot
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
Static Conducting
Cross Rigid
High Heat
Impression Top
Oil Resistant
Fire Resistant
FDA Approved
No
No
No
Yes
Yes
No
No
Suggested Fasteners:
Flexco Plate/Rivet
Flexco Hinged
Alligator Staple
Clipper Lace
Alligator Lace
#140/R5
#375 or 550
N/A
N/A
N/A
