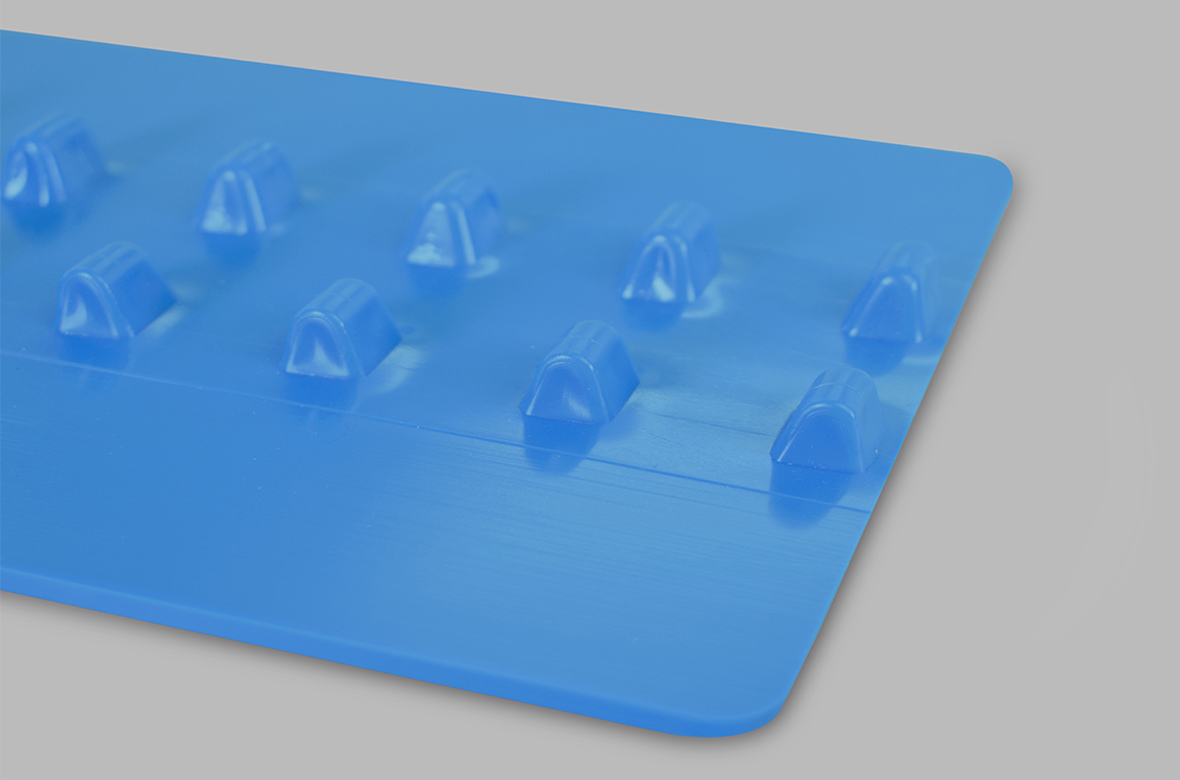

PCCDB ID 98A 3.5mm
international designation:
This ProClean center drive belt is compliant with the NSF/ANSI/3-A 14159-3-14 hygiene standard for the design of mechanical belt conveyors used in meat and poultry processing. The maximum belt speed is 200 fpm. It is designed for use in all food and washdown environments, ensuring hygiene and safety, making it ideal for food processing applications requiring high sanitary standards.
Similar products that may interest you:
Construction:
Compound Top Cover
Top Cover Description
Top Cover Shore
Compound Bottom Cover
Bottom Cover Description
Bottom Cover Shore
Number of Plies
Anti Static
Overall Gauge (in)
Unit Weight- lb/PIW
Maximum Width (in)
Temperature Range (°F)- High
Temperature Range (°F)- Low
Thermoplastic Polyurethane
Inverted Diamond
98 Shore A
Thermoplastic Polyurethane
Smooth w/ Center Lug 39.7 mm c
98 Shore A
N/A
No
(3.43 mm) 0.1350 in
0.0775 lbs/PIW
60 in
160 °F
15 °F
Misc:
Pulley Diameter, Minimum
Normal Flex
Back Flex
(80.01 mm) 3.1500 in
(100.08 mm) 3.9400 in
Bucket Projection, Maximum
Belt Strength:
Pull for 1% Elongation
(7 N/mm) 39 PIW
Splice Instructions:
Splice Process
Butt Weld
Note: Listed above is a guideline only. Every vulcanizer is different and will show different results. We recommend that you do a test splice with your press before attempting the actual belt splice.
Other:
Oil Resistant
Fire Resistant
FDA Approved
Yes
No
Yes
Suggested Fasteners:
